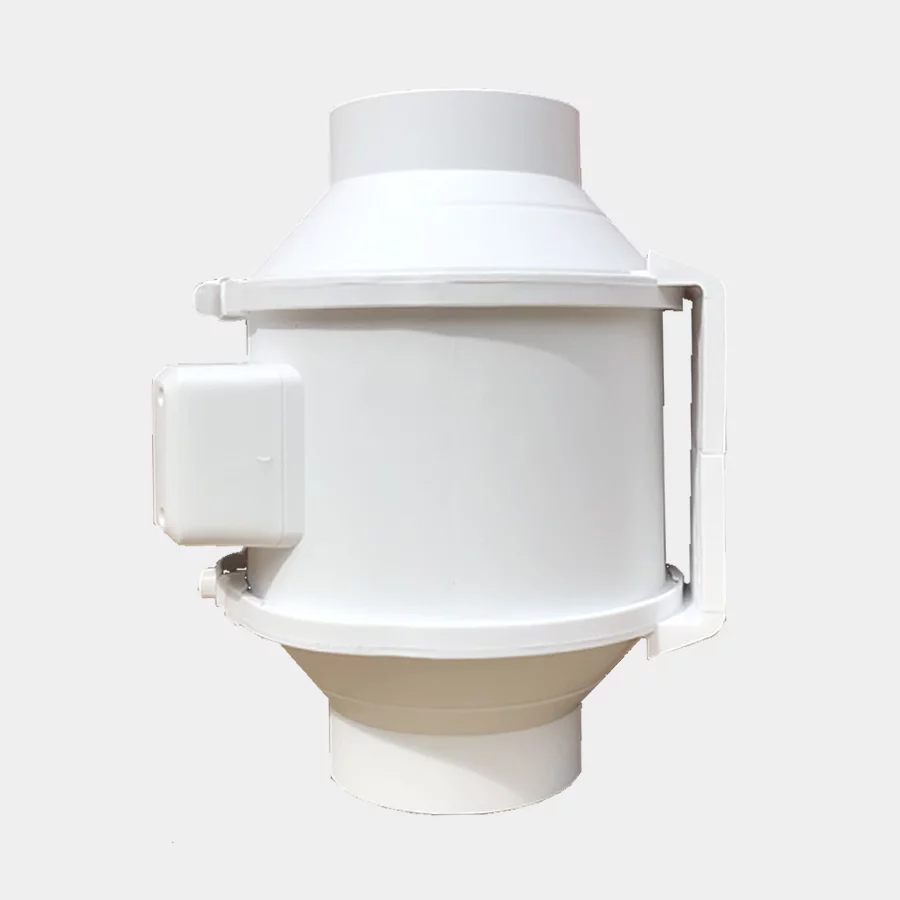

WooWoo Duct Fan 110mm, 230v AC

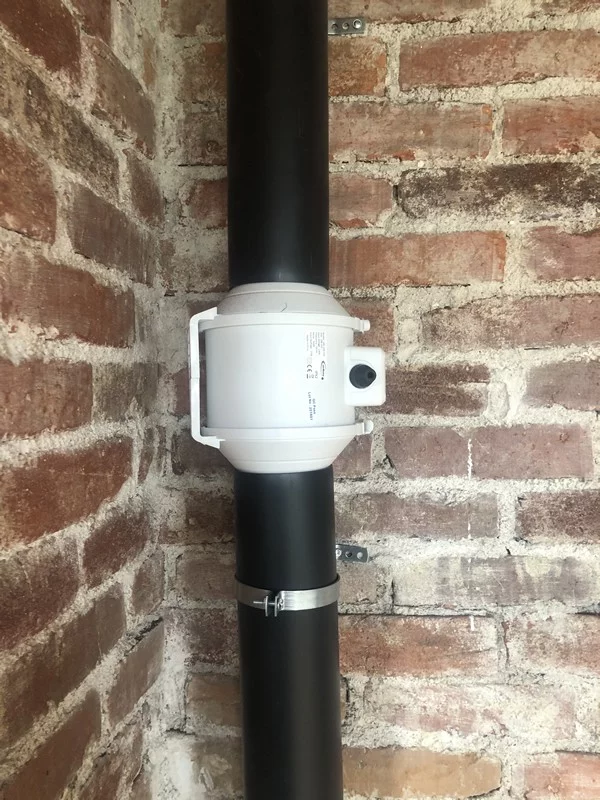

Mains-powered (230v AC) ventilation fan for 110mm pipework, such as the ventilation stack pipe for the WooWoo GT and GT LUX composting toilets.

More powerful than the standard WooWoo GT electrical fan, making it suitable for ventilation two chambers at the same time, or where the pipe run is longer and more complex than usual

Has three speeds, set up by changing the internal wiring. In general, the lowest speed setting is usually sufficient.

Suitable for installation indoors or outdoors in a sheltered position (rated IPX2). Depending on wiring and location, the fan may need to installed by a qualified electrician.

Component Specifications

• Width: 170 mm
• Length: 240 mm
• Height: 200 mm
• three speed levels
• fits onto 110 mm pipe
• V/Hz: 230/ 50
• r.p.m: 2300 – 1700
• m³/h: 120 / 138 /198 (with different speed levels)
• Power: 22 / 24 / 33 W
• Weight: 1.95 kg
• Guarantee: 2 years

Setting the speed

As mentioned above, the lowest speed setting is usually sufficient. The speed is set by wiring the live terminal to one of three internal connectors (low, medium or high).

Maintenance

Periodically switch off the power to the fan and inspect the blades for dirt, dust and other debris. Clean as required.

Manual: [download]
