WooWoo GT Duct Fan 230v or 12v

SKU WWGTFAN12 Categories , , Tag

£90.00 inc VAT

A mains or 12v electric duct fan to be used for dry toilet ventilation such as the WooWoo GT and GT LUX. Suitable for use with 110 mm ventilation pipe. Ideal where the toilet is inside a building and reliable ventilation is required. Speed controller when connected to mains (fixed speed on 12v connections).

Out of stock

Description

Inline electric duct fan that connects to 110mm ventilation pipes. Can be wall mounted. Designed for use with the WooWoo GT, GT LUX and GT LUX Cassette composting toilets, it provides continuous, reliable and complete odour removal in all weather conditions to ensure a pleasant user experience.

  • For 230V AC operation, it comes with a step-less speed controller and transformer and is ideal for installations where mains electricity is available.
  • For 12v DC operation, the fan has a fixed speed and is ideal for off-grid settings.

Specifications: fan

– Rated Voltage of fan: DC 12V (range is 6-13.8V DC) – see speed controller for mains ratings
– Pre wired 12v connector. Approximate length of wire from connector to fan is 20cm
– Rated Current: 0.26A at 12v
– Rated input power: 3.1W at 12v
– Ingress protection: IP68 (suitable for use outdoors)
– Airflow: 170 m³/h – 100 cfm (Air pressure): 10.65mH2O
– Noise Level: 30.3dB(A) at 12v DC
– Bearing Type: Two Ball Bearing
– Overvoltage Protection: Yes
– Warranty: 2 years
– Origin: China

Actual fan performance will depend on the length, type and routing of vent pipework.

Specifications: 230v speed controller

The speed controller only works on mains voltages and comes pre-wired with a UK 3-pin plug. In low-use settings, a slower speed can be chosen, or select a higher speed in high-use environments. The speed controller needs to located in a dry and accessible location.

* Input voltage 110-240V AC
* Output voltage DC 3-12V 2A
* 3-pin UK mains plug can be cut off and the speed controller wired into a fused spur if preferred
* Speed controller should be located in a dry environment
* Length of wire from mains plug to speed controller is approximately 85cm (this section should be indoors)
* Length of wire from speed controller to 12v connector is approximately 85cm
* 12v wire can be extended as required to reach the fan (extra wires not supplied)

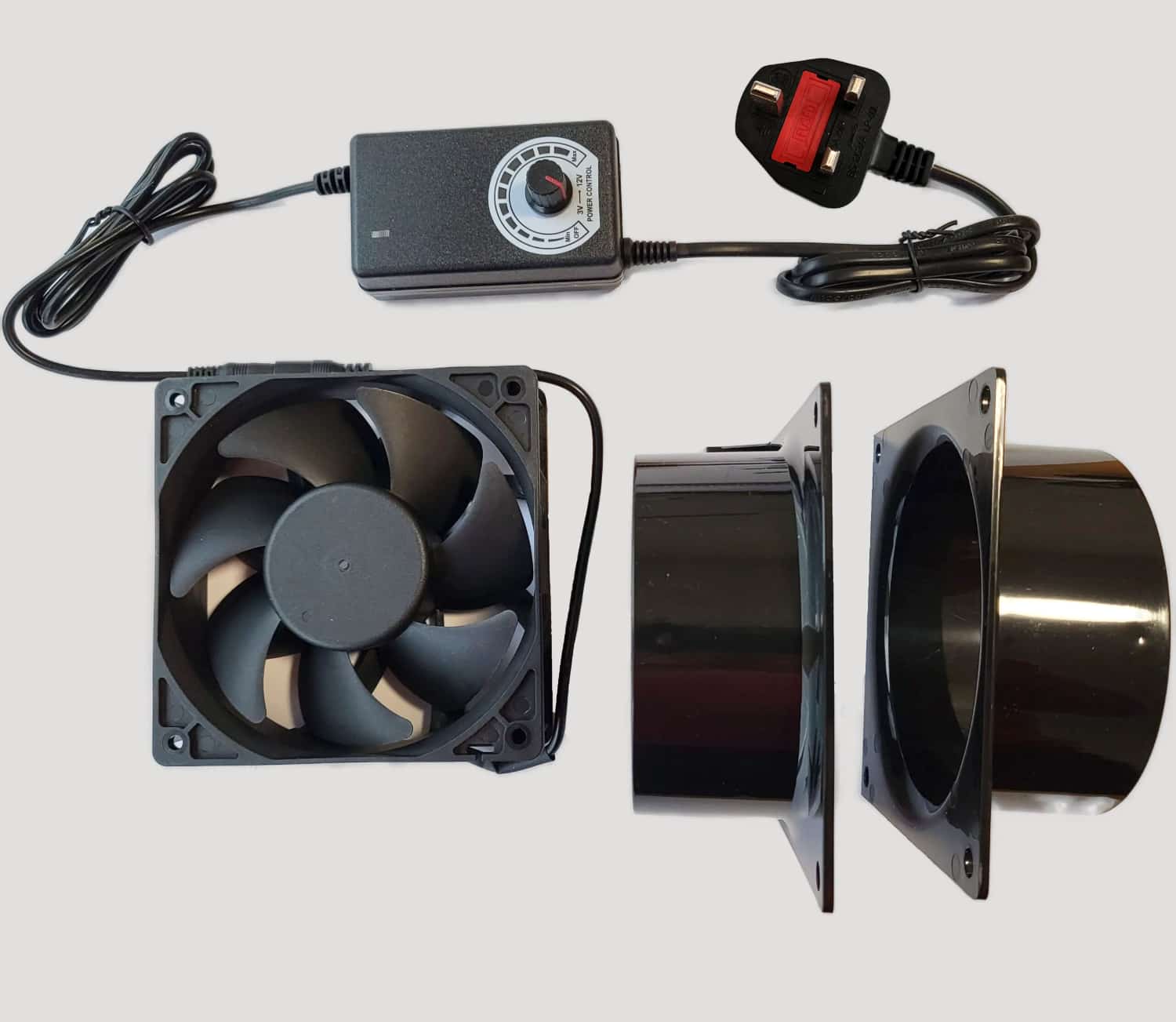

The fan is sandwiched between two 110 fittings that enable quick and easy fitting of standard 110mm pipes.

You can also fit a wind fan as a backup fan for 100% peace of mind.

Additional information

Weight 2 kg
