Description

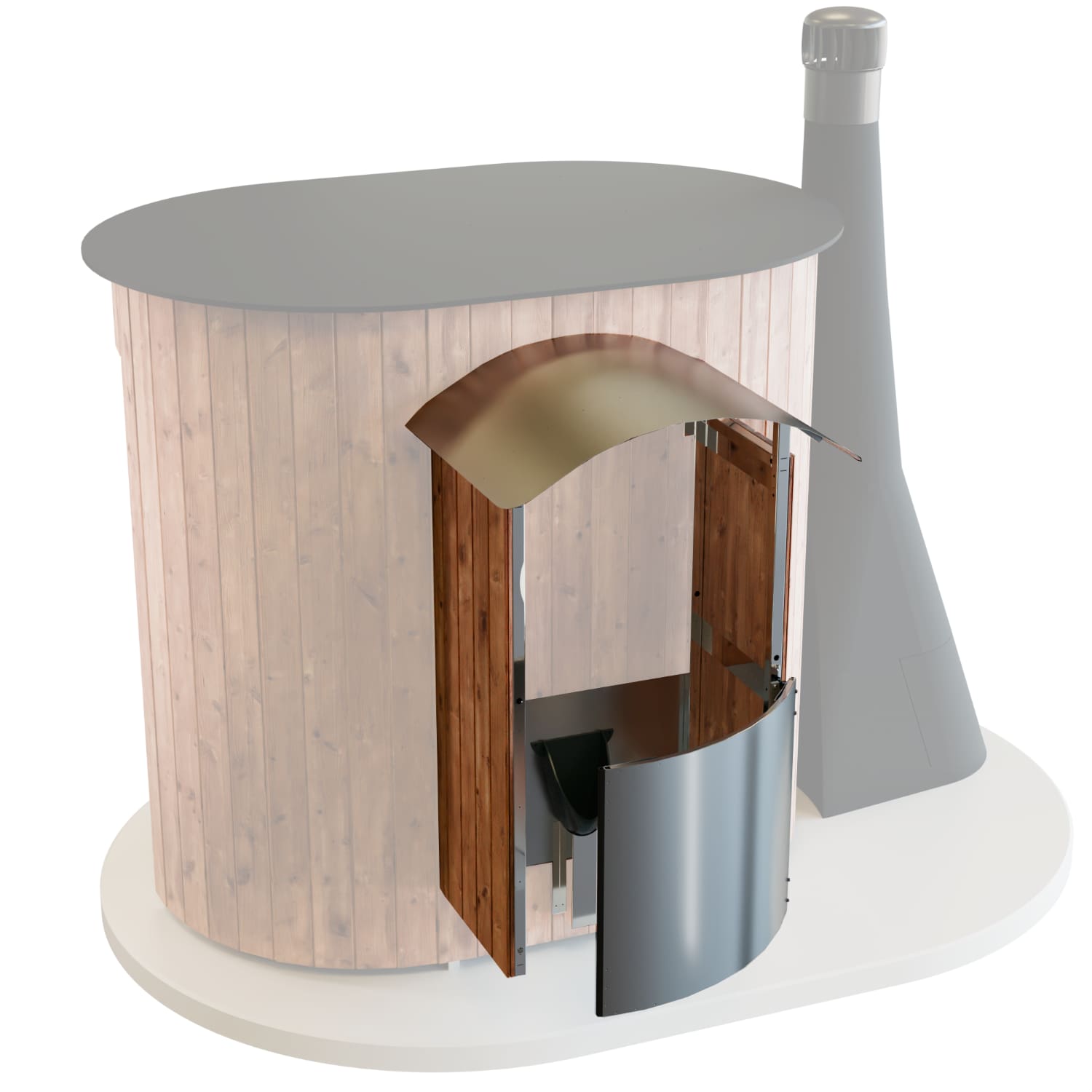

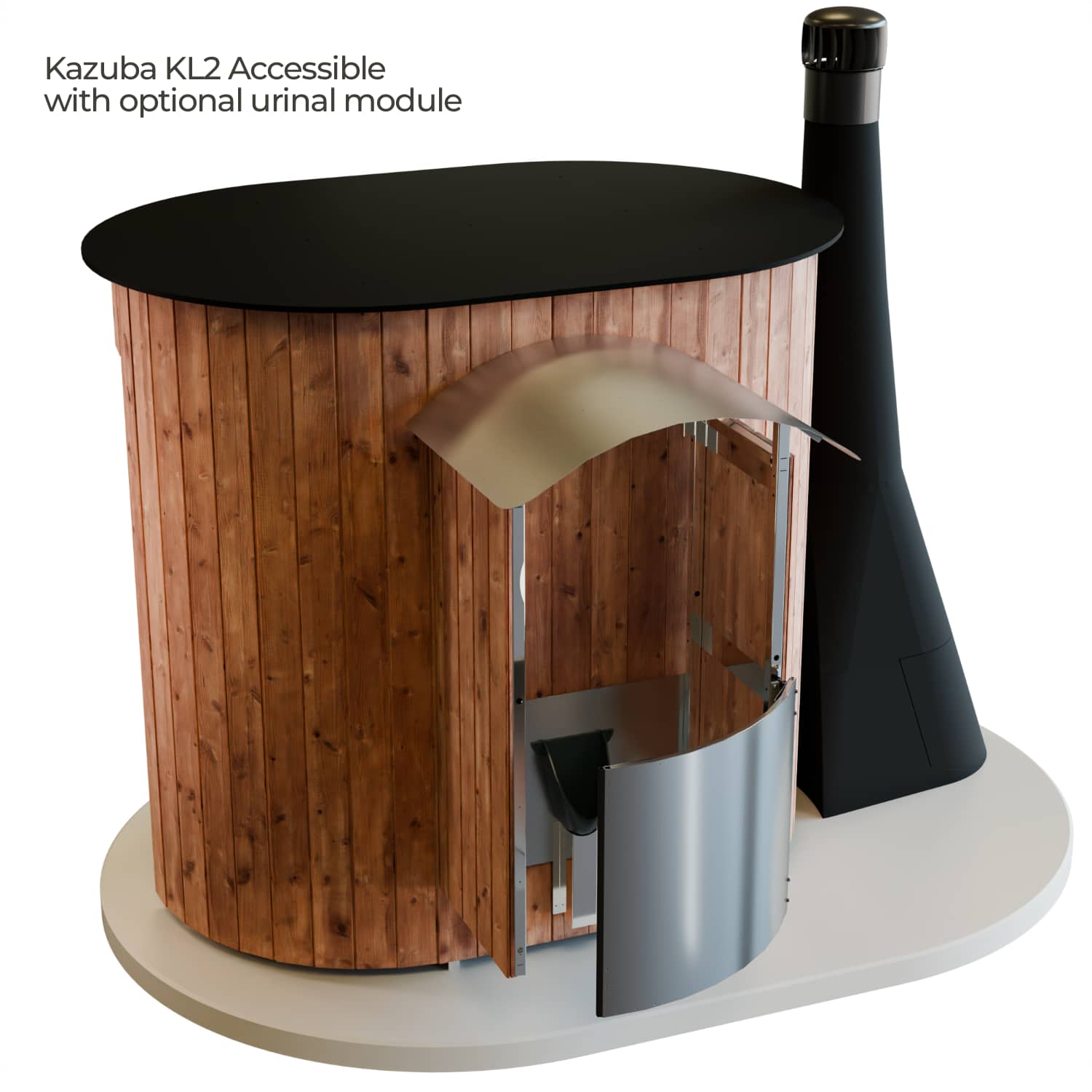

Gents urinal module add-on for the Kazuba KL2 Accessible.
Matches the style and construction of the KL2 and provides an easy way for male users to urinate, leaving the main toilet free for others. The module can be fitted on either side of the KL2 Accessible, but is more usually installed on the side opposite the door.
Features a metal curved roof to keep the user dry, a galvanised metal modesty door and Thermowood cladding on each side to match the KL2.
The simple waterless urinal requires no maintenance beyond standard cleaning.
If installing at the same time as your Kazuba KL2 Accessible dry toilet, the outlet from the urinal can be led into the STK underground tank. Alternatively, if the use is expected to be under 10 litres per day, the outlet can be led into a soakaway pit or leachate drain as long as you are >10m away from a watercourse and >50m away from a well or borehole (current guidelines for England, as issued by the Environment Agency).
Download the assembly manual (4.5Mb, PDF)
