5 YEAR WARRANTY (3 years on fan)
12V DC or 240V AC – Ideal for off-grid
LOW ENERGY CONSUMPTION
WORKS ALL YEAR ROUND

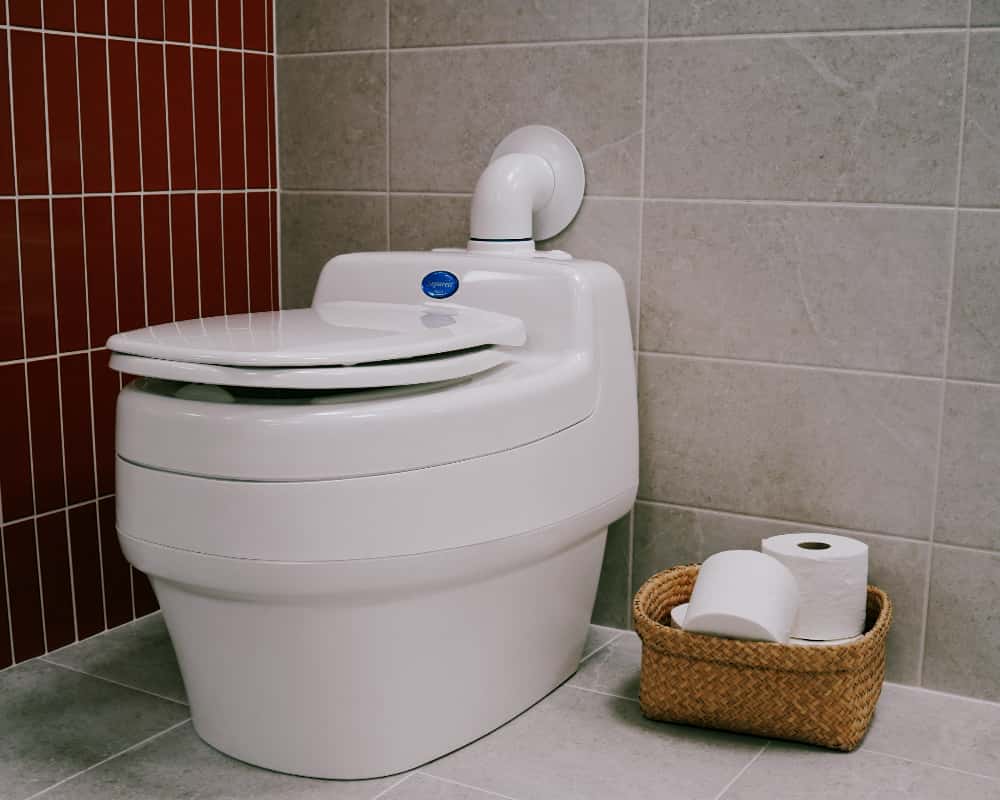

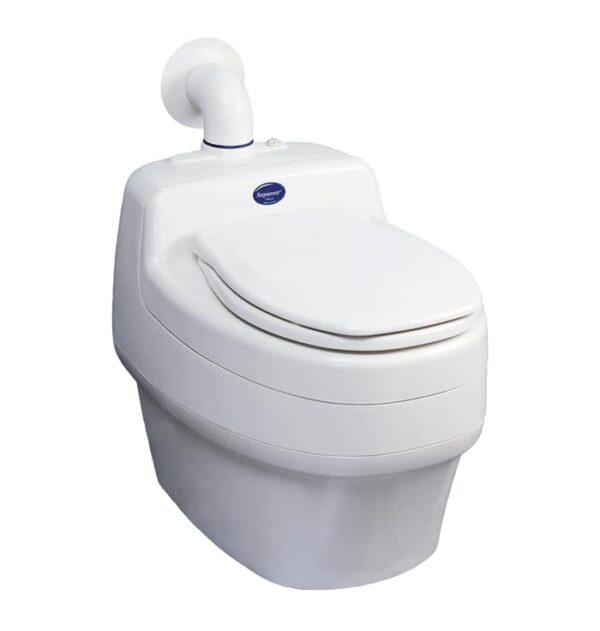

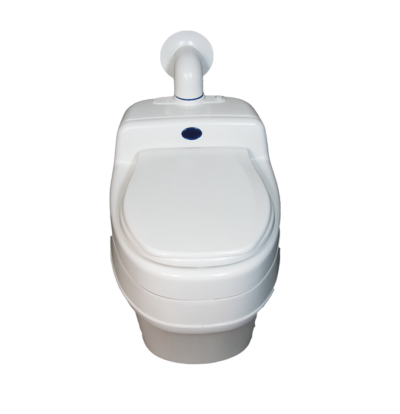

The Separett Villa 9010 waterless compost toilet is all but identical to that of the Villa 9000, the only difference being that the fan is single speed and runs from 12-volts DC power (or 230V AC using the supplied adaptor). The main advantage is that it’s ideal for “off-grid” usage, such as cabins, caravans, shepherd’s huts etc, as the toilet requires around 2.5 watts of power at 12 volts DC. An adaptor for mains electrical use, should it be available, is supplied.

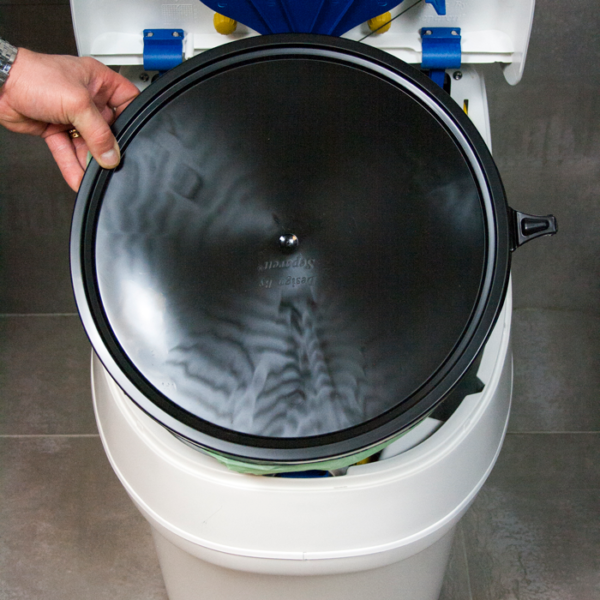

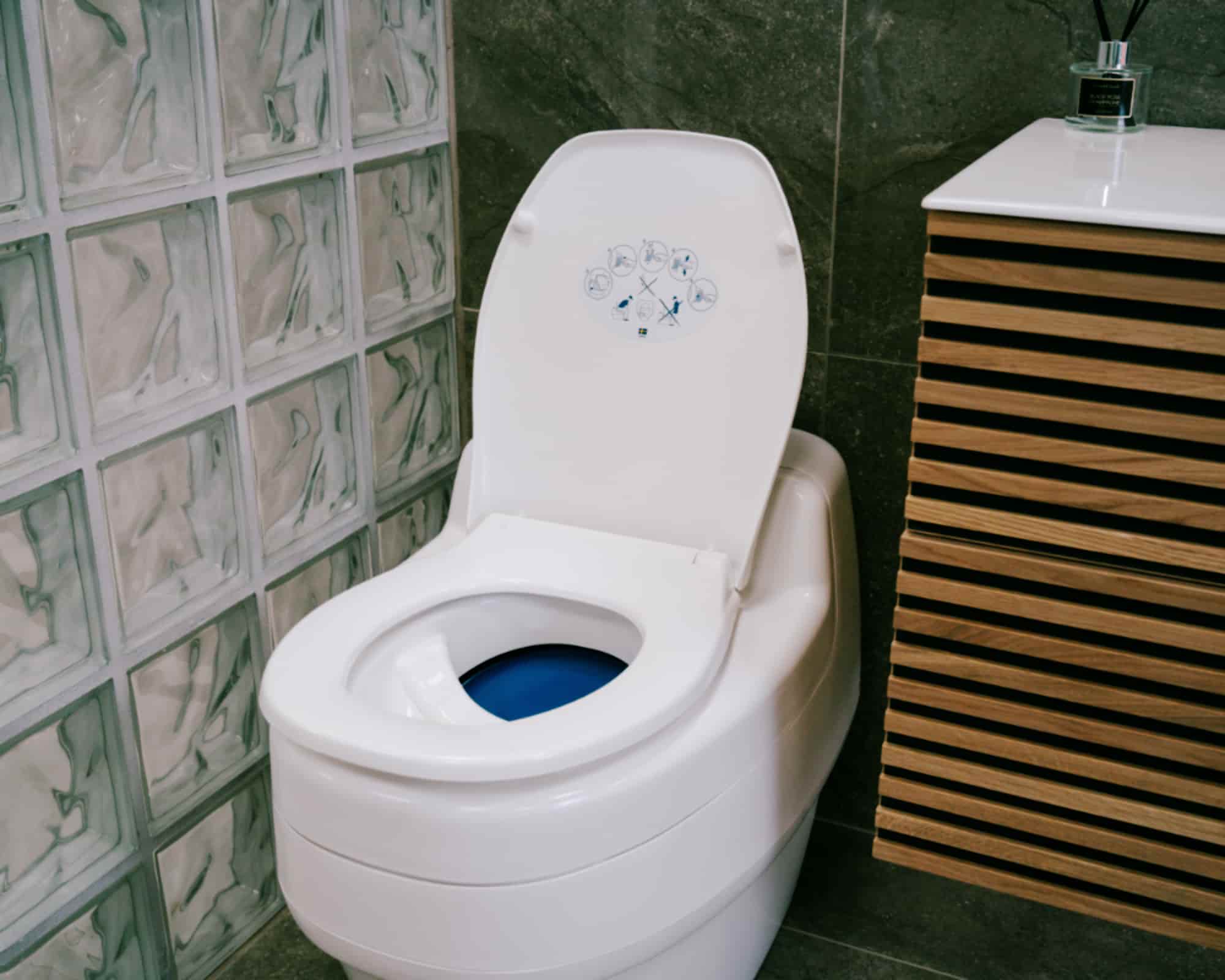

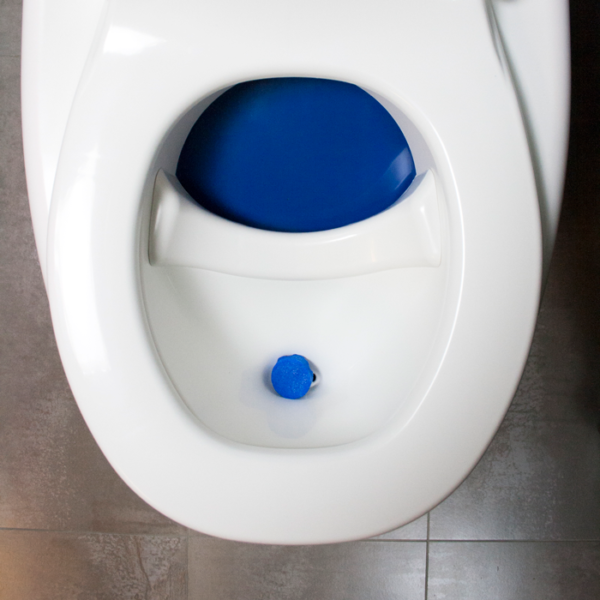

The toilet’s ingenious design separates solid waste from liquid, with the fan helping to dry the former quickly to eliminate odours efficiently. When weight is put on the toilet seat, the special concealing screen opens, revealing the solids container which is normally hidden from view. Urine is collected in the front part of the urine diverting bowl and it then flows, with gravity. out of the rear of the toilet and into either a small soak-way pit or a container for subsequent emptying (container not supplied). The solids container should only need emptying every 3 to 4 weeks, depending on usage (3-4 weeks is typical for two people using this toilet full time).
The toilet itself is made from a type of high gloss plastic, called polypropylene, which looks almost identical to the standard porcelain toilet you would find in any home. This material is highly durable, fully recyclable, impact proof and easy to clean, maximising hygiene.
For those with small children, or those likely to have small children use it, there is an optional child seat that is easy to attach and reattach as needed.

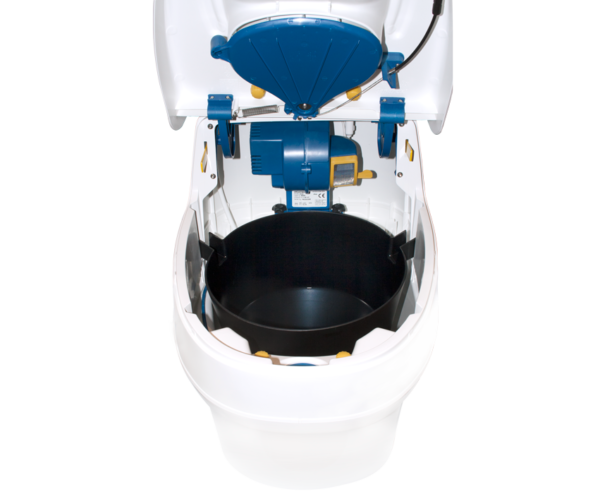

Electrical: The Separett Villa 9010 will require a 12 volt DC supply (such as a leisure battery) in order to operate the fan. The fan is run continuously whilst there is anything in the solids container. You will need to ensure you have the ability to recharge (from solar, wind or other means) or swap the battery to enable continual use.

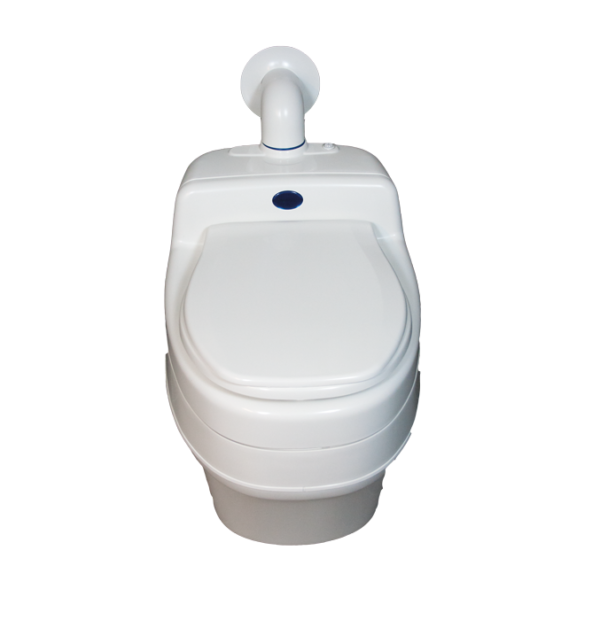

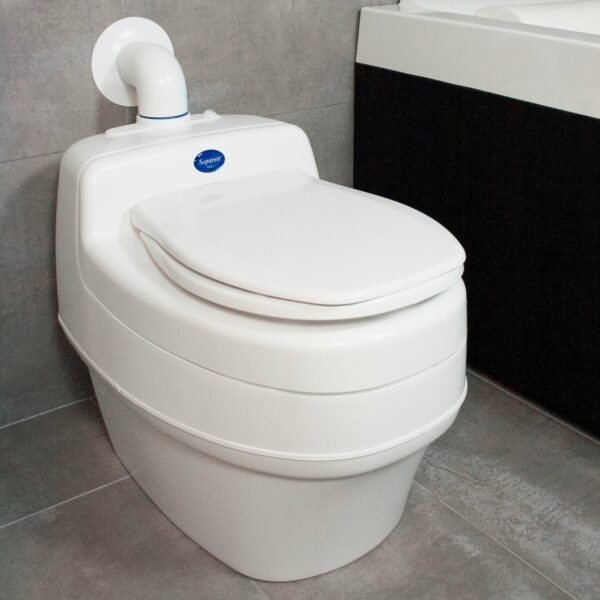

Ventilation: The fan pulls air through the toilet and out through a 75mm vent pipe at the top of the toilet. From here it can either be turned through 90 degrees and go directly outside through the wall (recommended), or straight up and through the roof/ceiling. The outside part of the duct will require an insect screen and a cap (included with the installation kit).
Liquid Outlet: The 32mm urine outlet is on the rear of the unit and can be led to a domestic wastewater pipe, a soak-away or a holding tank. Please ensure you comply with any local codes regarding the disposal etc of urine.

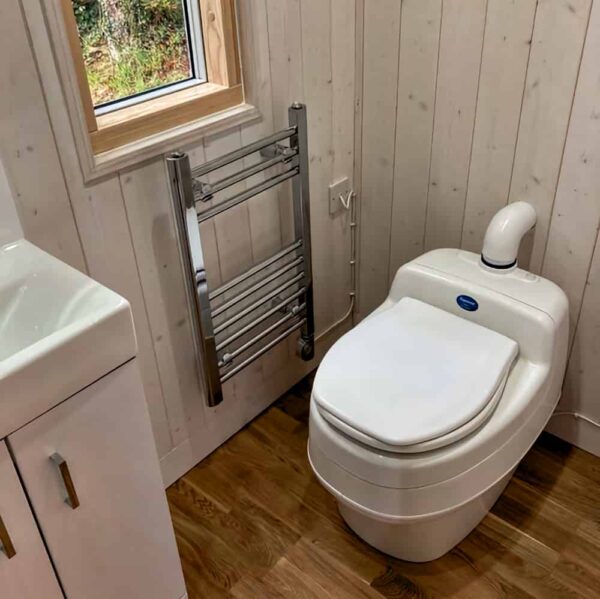

Installation is straightforward (see video below) and can be undertaken by people competent in DIY. If installation is being made through a wooden structure, then it will usually take 2-3 hours. Installing the vent pipe through brickwork or other solid structure will involve more ‘building’ type work and may require a tradesperson to assist with certain aspects.
Includes a cardboard template, showing exactly where the holes are needed is included and simplifies the installation, removing any guesswork about pipe positions.
Solar & Battery recommendations
If you are looking for a solar panel and battery to supply power for the Villa 9010, we can only make general recommendations as the specifics of your site and other local conditions will affect how much electricity a solar panel is able to generate. Assuming a site in the UK, and that your intended location doesn’t have any significant shading or shadows during the day, and with the solar panel angled due south, we generally suggest a panel of around 60 watts, coupled with an 80Ah battery is fine for year-round use.
Most items are included with the Separett Villa 9010 to enable a typical installation where you vent through the wall behind the toilet. In addition to the toilet itself, you will also receive: vent pipe 40cm (Ø75mm), vent grid, indoor flashing for vent pipe, 2m hose for urine waste (Ø32mm), connector pipe 90°, vent cowl, 3 solid waste containers and 2 lids, power cables, silicone sealant compound, mounting screws, and a pack of 10 biodegradable bags (to line the solids container).
The Villa 9010 comes with a 230v to 12 v adaptor to enable you to connect this toilet to the mains where/when it’s available.
For installations where the vent pipe cannot be routed directly through the wall behind the toilet, we can also supply additional vent pipe 75mm diameter vent pipe and 90 degree pipe bends as required. Separett recommend a maximum pipe run of 4m and no more than 2 x 90 degree bends with the Villa 9010.
Please note that the manufacturer may change the specifications, design and supplied accessories as part of continuous product improvement.
Click links below to download file
|Capacity:||Unlimited (solids container needs emptying after approx 60 uses)|
|Battery Cable:||1.9 metres|
|Energy consumption:||12 V/2.5 W/210 mA|
|Material:||Recyclable high-polish polypropylene|
|Noise level:||<30 dB(A)|
|Package size:||L:77 W:47 H:66 cm|
Ventilation out: Ø75 mm.
Urine run-off: Ø32 mm
