- 5 YEAR PARTS WARRANTY (3 years on fan)
- 12V DC or 230V AC POWER FOR FAN
- LOW ENERGY CONSUMPTION (around 2 watts at 12v DC)
- IMPROVED, MORE POWERFUL FAN
- WORKS ALL YEAR ROUND IN ALL CLIMATES
- DOES NOT NEED WATER, COVER MATERIAL, or SEWER CONNECTION
- ELEGANT DESIGN – standard toilet height
- AUTOMATIC CONCEALING SCREEN COVERS SOLIDS CONTAINER
NB The 2022 Separett Villa is the replacement name for the Villa 9000 and Villa 9010 (see our blog post) which have been combined into one single product.
The Separett Villa waterless, urine-diverting toilet has a small but powerful (upgraded in 2020) ventilation fan that runs from either a 12-volts DC power source or 230V AC mains using the supplied 3-pin adaptor. The fan only consumes a miserly 2 watts at 12v and runs continuously to provide simple, odour-free operation.
It’s the perfect choice for places where there is limited or no mains water and no mains drainage or sewerage, such as remote or off-grid houses, cabins, caravans, shepherd’s huts, garden rooms, garden offices, glamping sites etc, as the toilet looks very ‘normal’ and is equally at home in a domestic or rustic setting.
The toilet’s ingenious design separates ‘solids’ from ‘liquids’ using a urine-diverting toilet bowl, and the fan/ventilation system draws foul air from the toilet to eliminate odours efficiently and completely. When the user sits down, a special concealing screen automatically opens, revealing the solids container which is normally hidden from view.
Urine is collected in the front part of the urine-diverting bowl and it then flows, with gravity, out of the rear of the toilet and into either a small external soak-way pit or a container for subsequent emptying (container not supplied).
The solids container should only need emptying every 3 to 4 weeks, depending on usage (3-4 weeks is typical for two people using this toilet full time). In most cases, a biodegradable bag lines the solids container, keeping it clean and making the process of emptying/changing very hygienic – the whole emptying procedure takes a matter of a few minutes. In a glamping/camping location, the solids container can be emptied/refreshed on cleaning/changeover day so incoming guests are presented with an empty toilet.
Unlike many other compost toilets, the Villa does not need any sawdust or cover material, making it extremely easy to use and maximising the capacity of the solids container. What makes this possible is the urine separator and the efficient ventilation system.
The toilet itself is made from a type of high gloss plastic, called polypropylene, similar to shower trays and baths. This material is highly durable, fully recyclable, impact-proof and easy to clean using non-abrasive cleaners, maximising hygiene.

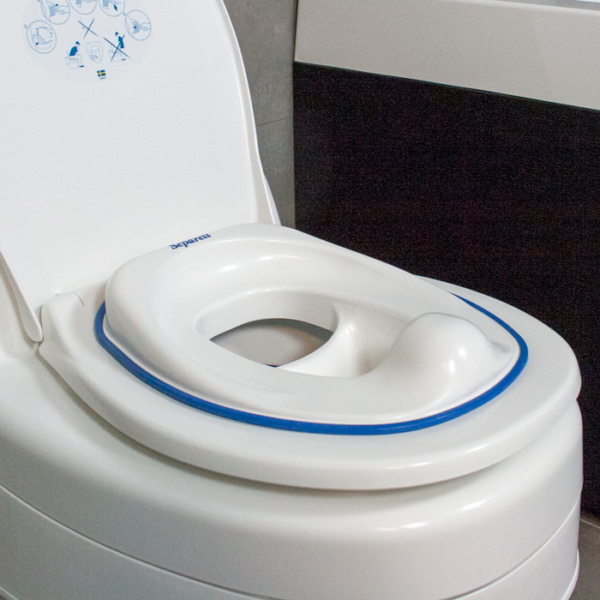

For those with small children, or those likely to have small children use it, there is an optional child seat that is easy to attach and reattach as needed and ensures kids can use the Villa in the correct way.
Electrical: The Separett Villa will require a 12 volt DC supply (such as a leisure battery and solar system) or a mains socket in order to operate the fan. The fan runs continuously.
Ventilation: The fan pulls air through the toilet and out through a 75mm vent pipe at the top of the toilet. From here it can either be turned through 90 degrees and go directly outside through the wall (recommended), or straight up and through the roof/ceiling. The outside part of the duct will require an insect screen and a cap (included with the installation kit). For ventilation options, see this page.
Liquid Outlet: The 32mm urine outlet is on the rear of the unit and can be led to a domestic wastewater drain, a soak-away or a holding tank. Please ensure you comply with any local regulations regarding the disposal etc of urine.
Installation is straightforward (see video below) and can be undertaken by any person competent in DIY. If the installation is being made through a wooden structure, then it will usually take 1-2 hours (plus any soakaway installation time). Installing the vent pipe through brickwork or other solid structure will involve more ‘building’ type work and may require a tradesperson to assist with certain aspects.
A cardboard template, showing exactly where the holes are needed, is included and simplifies the installation by removing any guesswork about pipe positions.
Solar & Battery recommendations
If you are looking for a solar panel and battery to supply power for the Villa in an ‘off-grid’ setting, we can only make general recommendations as the specifics of your site and other local conditions will affect how much electricity a solar panel is able to generate. Assuming a site in the UK, and that your intended location doesn’t have any significant shading or shadows during the day, and with the solar panel angled due south, we generally suggest a panel of around 50 watts, coupled with a 50Ah battery is fine for year-round use.
Most items are included with the Separett Villa 9010 to enable a typical installation where you vent through the wall behind the toilet. In addition to the toilet itself, you will also receive: vent pipe 40cm (Ø75mm), external vent grid/cover, indoor flashing for vent pipe, 2m semi-flexible hose for urine waste (Ø32mm), connector pipe 90°, vent cowl, 3 solid waste containers and 2 lids, 12v power cable, 230v mains adaptor, silicone sealant compound, mounting screws, and a sample consumables pack (2 biodegradable bags to line the solids container, a Bio Drain block and an Absorb pad).
For details of possible ventilation options, please see our blog post: Separett Villa Ventilation Options.
Please note that the manufacturer may change the specifications, design and supplied accessories as part of continuous product improvement.
Click links below to download file
|Capacity:||Unlimited (solids container needs emptying after approx 60 uses)|
|Battery/Power Cable:||1.5 metres|
|Energy consumption:||12 V/2 W/200 mA|
|Material:||Recyclable high-gloss polypropylene|
|Noise level:||<30 dB(A)|
|Package size:||L:77 W:47 H:66 cm|
Ventilation out: Ø75 mm.
Urine run-off: Ø32 mm
